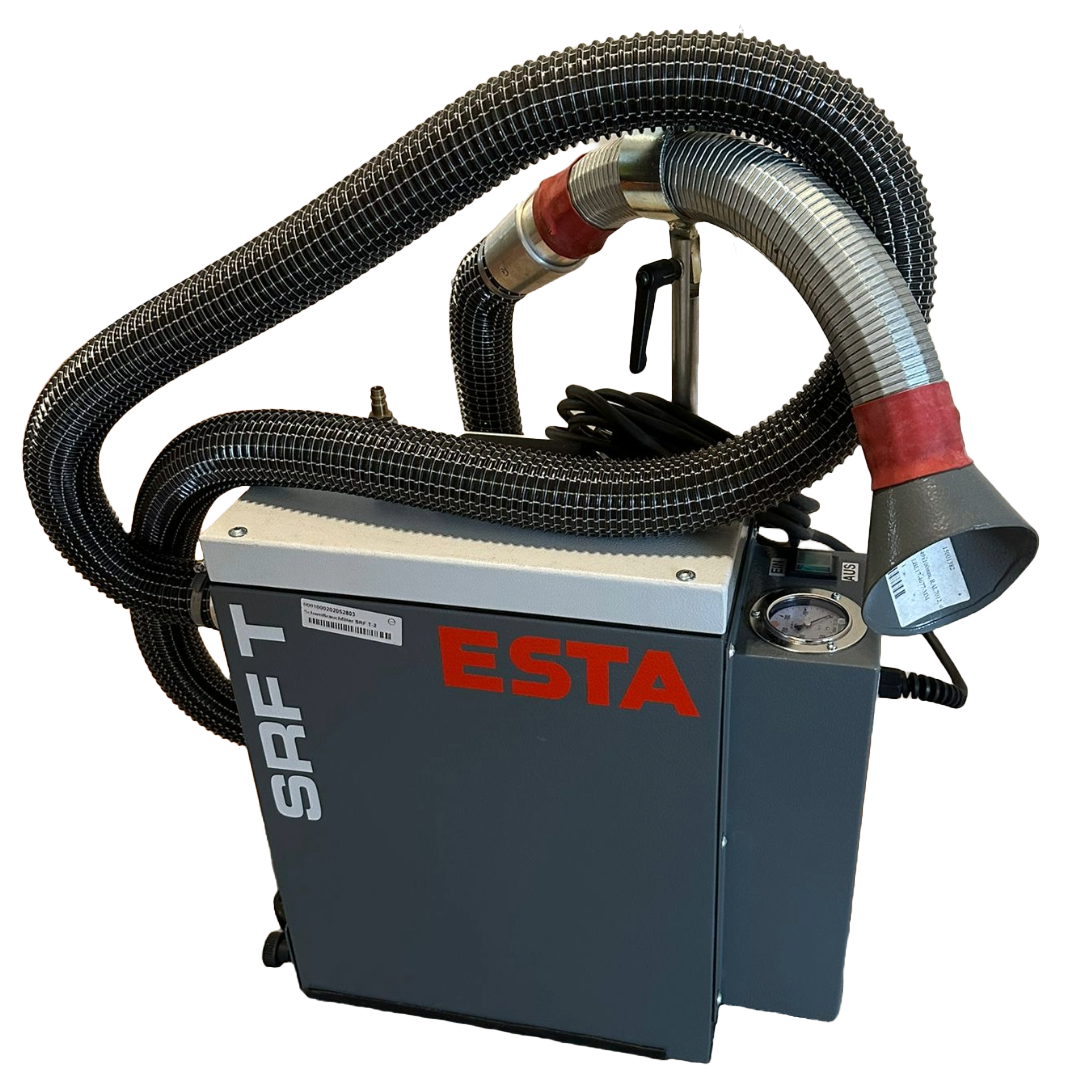

ESTA welding fume extraction SRF T-2 (used)

Compact welding fume filter for flexible applications

The compact, portable SRF T models are designed to be connected to welding torches and capture welding fumes directly at the point of origin. Optionally, solder fumes can also be extracted with the devices. Thanks to the cleanable permanent filter cartridges, there are no ongoing follow-up costs. A dust collection drawer makes it easy to dispose of the collected goods. Ideal for welding fume extraction on construction sites, in shipbuilding, at small parts welding stations or in car workshops.

Specifications

Condition: used. Extraction system and filter like new.

ESTA Welding Fume Filter SRF T-2

Max. air volume flow m³/h: 200

Connection Diameter mm: 50

Suction hose m: 3.5 incl. suction shield and magnetic foot holder

Max. vacuum Pa: 19,000

Connection voltage V: 230

Drive power kW: 1.1

Filter area in m²: 0.8

Dimensions (L/W/H) mm: 390 × 210 × 500

Weight kg: 15

Sound emission dB(A): 66
