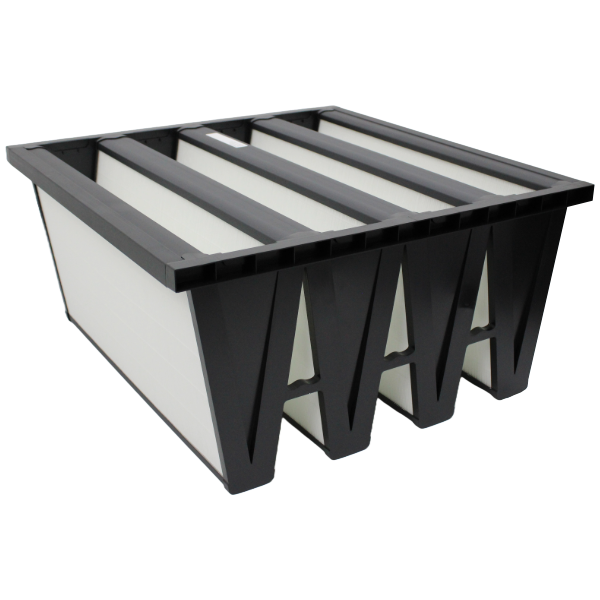

Compact Filter F9, ISO ePM1 85%, 592x490x292mm

SKU 100348
€116.42
Price incl. MwSt. (19%) €18.59
Excl.  shipping
Estimated delivery time
Shipping: 3–6 days
1
Product Details
Material: Glasfaser, Minipleat
Filtermaterialoberfläche in m2: 14
Dichtungsmaterial: ohne
Filtrationsklasse: F9, ISO ePM1 85%
Thermischer Wiederstand in °C: 70
Abmasse Oben in mm: 592x490
Gesamthöhe in mm: 292

Quality for the professional – buy special air filter online

We are the perfect partner to create clarity again in cloudy times with the right air filter. Our cartridge air filters, specially developed for industry, are IFA tested, DGUV compliant and are manufactured from certified materials according to DIN9001:2015 in the EU.


In these areas, the air filter is used

Class F7: as a filter of the first purification stage (pre-filter) or the second purification stage (secondary filter).

In hygienic areas, a class F7 filter is often used as a pre-filter and a class F9 filter as a secondary filter.


Product Details of the Air Filter

Construction: then not all filters are the same

Filter frame: plastic; The flange allows installation in the installation also instead of pocket filters

Filter medium: a very high quality glass fibre filter carton, non-hygroscopic.

Filter pack: consists of eight Mini-Pleat filter packs shaped into four V-shaped pockets

Waterproofing: the package is sealed in the frame with two-component polyurethane adhesive; the filter frame can be equipped with a seal on the flange from the air outlet side

Filter material surface area in m2: 14.0

Gasket: without

Filtration class: F9, ISO ePM1 85%

Volume flow m³7/h: 2800

Initial pressure difference [Pa] ±10%: 100

Final pressure difference [Pa] max.: 450

Thermal resistance in °C: 70

Top dimensions in mm: 592x490

Total height in mm: 292
