Quality for the professional
– buy special air filter online
We are the perfect partner to create clarity again in cloudy times with the right air filter. Our cartridge air filters, specially developed for industry, are IFA tested, DGUV compliant and are manufactured from certified materials according to DIN9001:2015 in the EU.
In these areas, the air filter is used
Class F7: as a filter of the first purification stage (pre-filter) or the second purification stage (secondary filter).
In hygienic areas, a class F7 filter is often used as a pre-filter and a class F9 filter as a secondary filter.

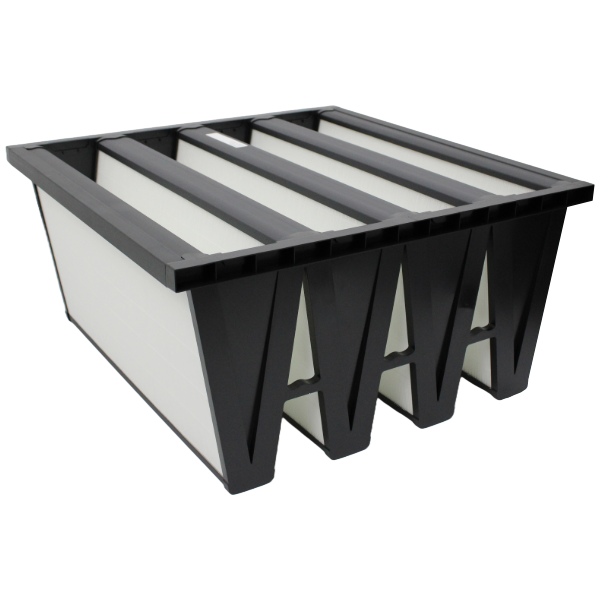

Product Details of the Air Filter
Construction: then not all filters are the same
Filter frame: plastic; The flange allows installation in the installation also instead of pocket filters
Filter medium: a very high quality glass fibre filter carton, non-hygroscopic.
Filter pack: consists of eight Mini-Pleat filter packs shaped into four V-shaped pockets
Waterproofing: the package is sealed in the frame with two-component polyurethane adhesive; the filter frame can be equipped with a seal on the flange from the air outlet side
Filter material surface area in m2: 17.0
Gasket: without
Filtration class: F7, ISO ePM2.5 70%
Volume flow m³7/h: 3400
Initial pressure difference [Pa] ±10%: 80
Final pressure difference [Pa] max.: 450
Thermal resistance in °C: 70
Top dimensions in mm: 592x592
Total height in mm: 292
